For licensed practitioners

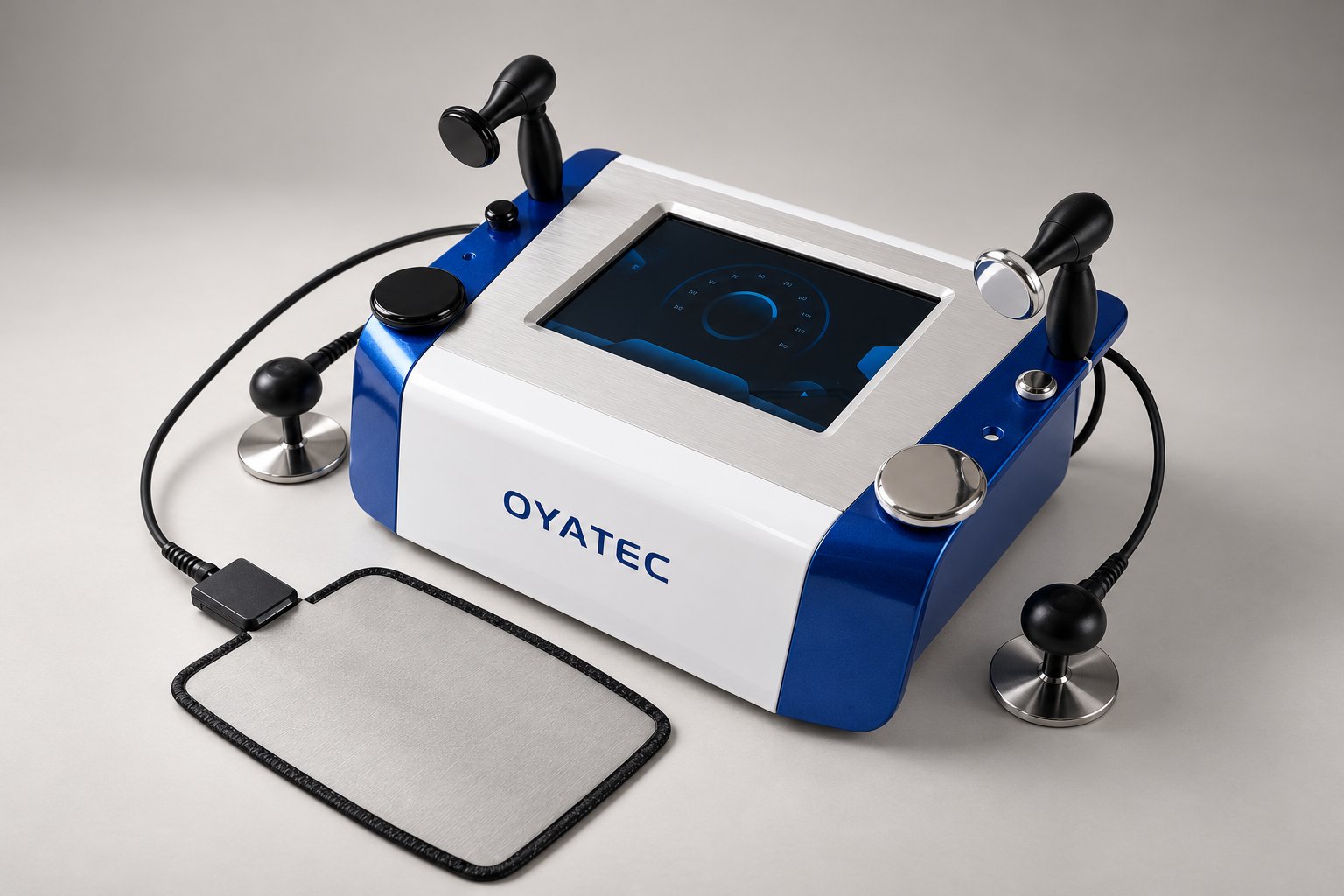

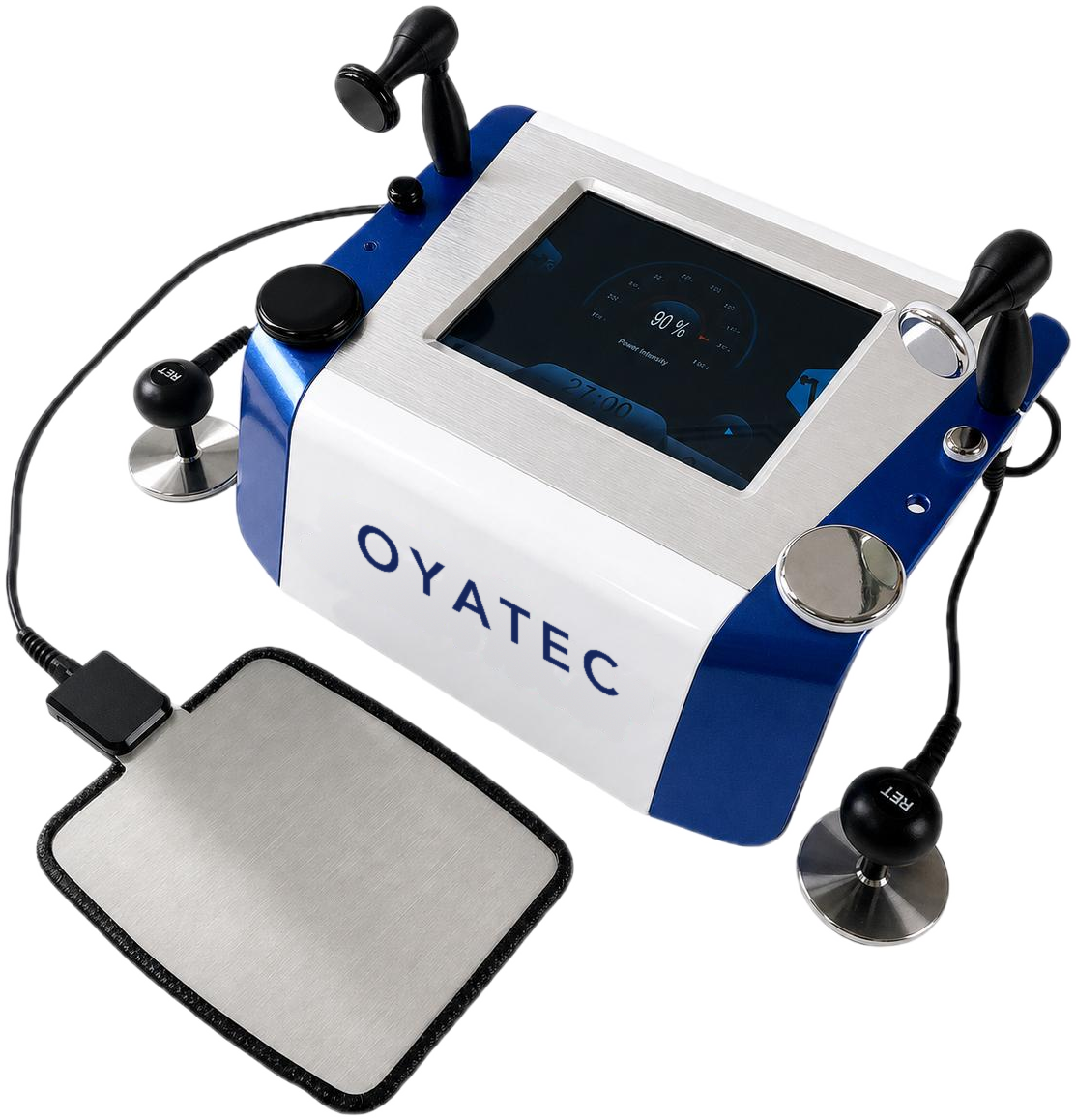

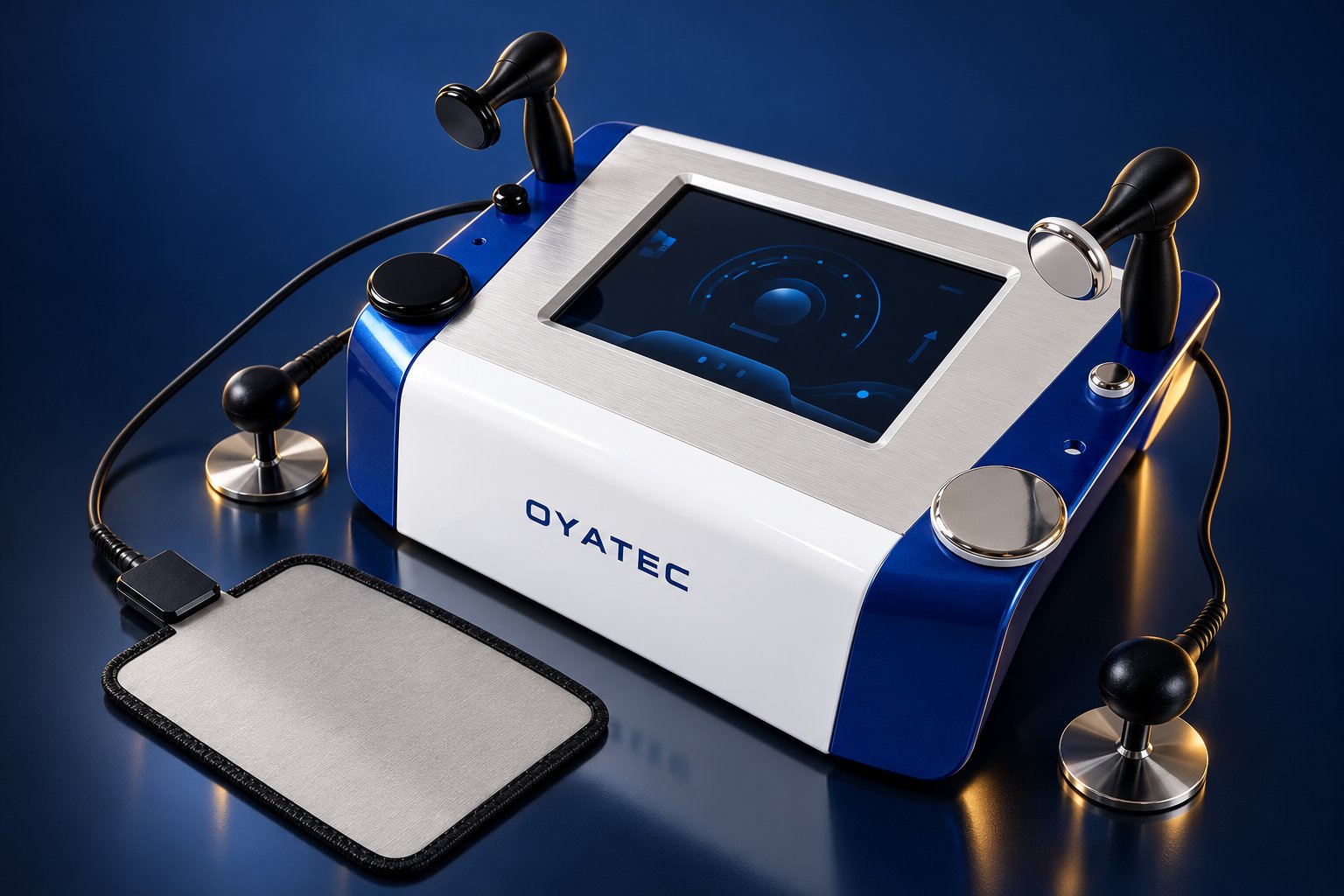

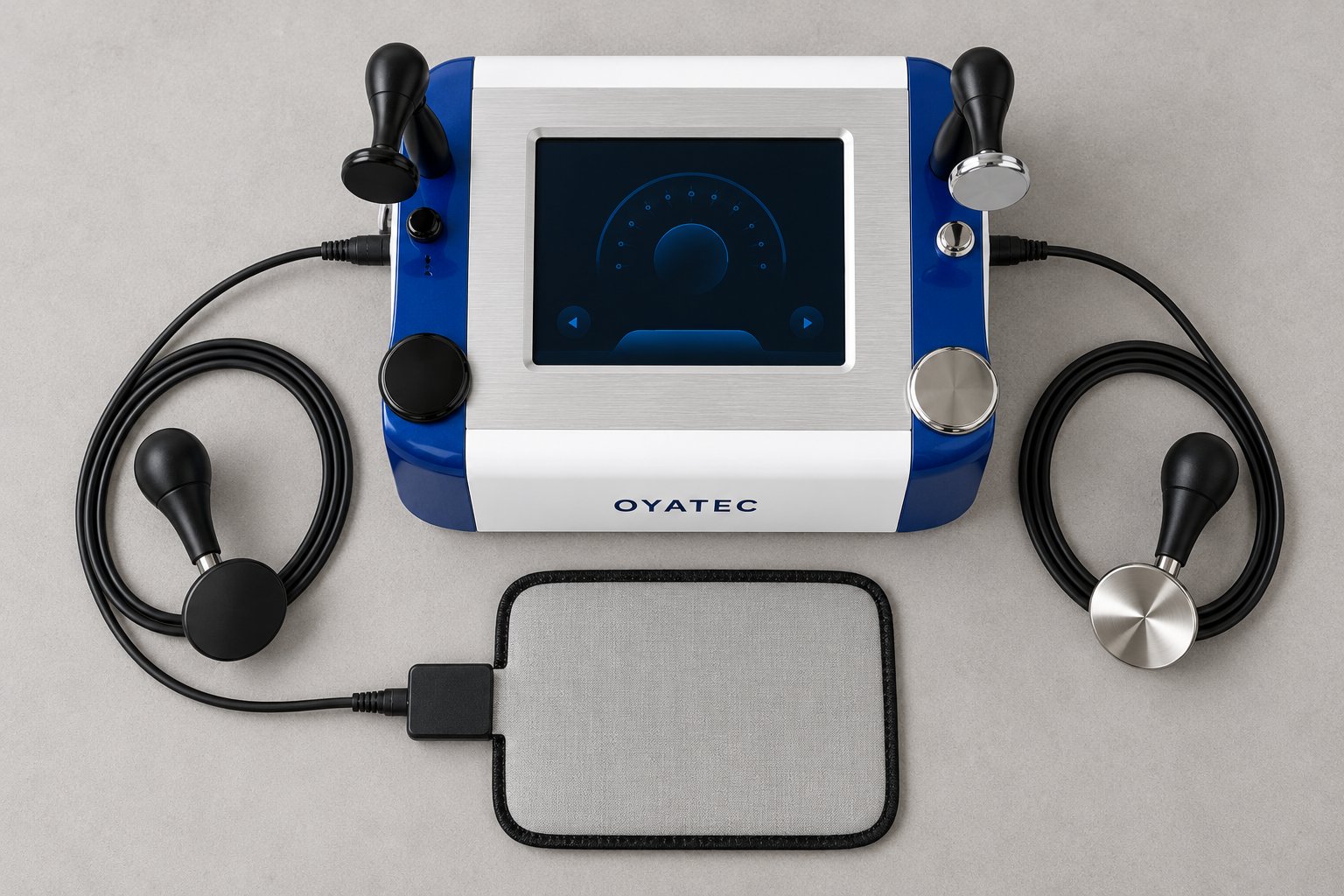

A tabletop TECAR unit built to Dr. Ouyang's specification. It has two handpieces, a return plate and a touchscreen with preset programs for each area of the body. Every clinic that buys it completes OYATEC certification first.
CET + RET
Two treatment depths
3 + manual
Heat levels
8
Body-area presets
- 01CET handpiece
- 02Touchscreen
- 03RET handpiece
- 04Return plate
The system sends a radio-frequency current from a handpiece through the patient to a return plate. The tissue in between warms from the inside. You choose the depth with the handpiece and the dose with the heat level and power.
It is built for a busy treatment room. It sits on a cart or countertop, runs from a standard outlet and is ready a few minutes after you switch it on. Any certified practitioner on your staff can pick a preset and start.
Capacitive. For muscle and soft tissue.
CET handpiece
The CET head is insulated, so the current gathers in watery, well-supplied tissue such as muscle and the layers under the skin. Use it for muscle tightness, trigger points, swelling and the first part of most sessions.
It comes with interchangeable heads in more than one size, for small areas like the elbow and large ones like the back.
The CET head puts the heat in muscle and the soft layers under the skin. The RET head sends it deeper, into tendon, ligament and the tissue around bone. Each can run at one of three heat levels.
- L1
Athermic
No warmth
Fresh injuries, swelling and bruising
- L2
Mild thermal
Gentle warmth
Increasing blood flow and easing tight muscle
- L3
Deep thermal
Strong warmth
Chronic pain, stiffness and scar tissue
In manual mode you set the power yourself, guided by the patient's rating of the heat from 0 to 10.
Fig. 2 Where the heat sits
CET handpiece
Muscle and the layers under the skin
RET handpiece
Tendon, ligament, joint and the tissue around bone
Typical values. We confirm the final specifications for your unit at your demo.
- Treatment modes
- CET (capacitive) and RET (resistive)
- Operating frequency
- 448 kHz*
- Maximum output
- Up to 200 W*
- Heat levels
- Athermic, mild thermal, deep thermal, and manual*
- Power control
- 0 to 100%, in 1% steps*
- Treatment timer
- 1 to 60 minutes, set to 30 by default*
- Display
- 8-inch color touchscreen*
- Preset programs
- By body area: neck, shoulder, elbow, wrist and hand, back, hip, knee, ankle and foot*
- Handpiece heads
- Interchangeable CET and RET heads in small and large sizes*
- Return plate
- Flexible metal plate with fabric edge, about 24 × 20 cm (9.5 × 8 in)*
- Power supply
- 100 to 240 V AC, 50/60 Hz, standard outlet*
- Size
- About 45 × 40 × 25 cm (18 × 16 × 10 in)*
- Weight
- About 9 kg (20 lb)*
- Electrical safety
- Built to IEC 60601-1 for medical electrical equipment*
* To be confirmed
- OYATEC TECAR main unitWith touchscreen and preset programs
- CET handpieceWith interchangeable heads in two sizes
- RET handpieceWith interchangeable heads in two sizes
- Return plateWith its connecting cable
- Handpiece holdersClip onto the unit
- Power cord
- Starter supply of OYATEC herbal gelSix 500 g jars
- Quick-start card and user manual
- OYATEC Certified window sticker and marketing kit
The herbal gel
TECAR needs a conductive medium between the head and the skin. Most clinics use a plain gel. OYATEC clinics use Dr. Ouyang's own formula, a water-based gel with extracts of herbs used in Chinese medicine for sore muscles and joints.
He developed it for his own patients in Friendswood and used it with TECAR for years before OYATEC began. It carries the current evenly, lets the head glide without dragging, and wipes off cleanly. Every certified clinic uses it in every session.
Certified clinics reorder online or by emailing clinics@oyatec.com. Orders ship within two business days.
Gel details
- Base
- Water-based conductive gel with herbal extracts*
- Jar size
- 500 g (17.6 oz)*
- Use per session
- About 10 to 15 g, roughly a tablespoon*
- Sessions per jar
- About 35 to 50, depending on the area treated*
- Storage
- Room temperature, out of direct sunlight. Use within 12 months of opening.*
* To be confirmed
Two-year warranty on the main unit
Parts and labor are covered for two years from delivery. Handpieces, cables and the return plate are covered for one year.
Replacement parts shipped fast
If a handpiece, cable or plate fails under warranty, we ship a replacement within two business days, so you don't have to cancel patients.
Support from people who use it
Call or email Monday to Friday, 8:30 am to 5:30 pm Central. Our support team is trained on the system and can walk you through checks by phone or video.
Clinical questions answered
Certified practitioners can send clinical questions to the OYATEC training team, which Dr. Ouyang leads.
Reach the support team
- Phone
- (281) 555-0142
- clinics@oyatec.com
- Hours
- Monday to Friday, 8:30 am to 5:30 pm Central
Most practitioners decide after trying TECAR on themselves. Book a demo in Friendswood or by video.
